AR 208

Description

The AR 208 enclosure is part of a Series of systems, which allows the assembly of different Line Arrays.

As with all teh other components in this series, it has been conceived to offer very high sonic performance, out-standing presence and extreme clarity, while meeting each and every one of the parameters that define the Line Array Technology.

The various elements found in teh enclosure make use of sophisticated loudspeaker coupling techniques in order to implement the appropiate shading, thus permiting total control of the horizontal dispersion and avoiding the cancelations inherent to conventional P.A. systems.

Furthermore, the use of complex wave-guides, permits an absolute control over the vertical coverage, an utmost necessity when directing our sonic energy to specific areas. The end result is a clear message without bouncing or reflected specific frequencies.

The necessary Vertical Coverage is obtained via the system's enclosures separation and angle setting between the same.

The full Line Array system will produce a coherent wave front which provides the interesting peculiarity of only lossing 3 dB every time we double the distance from the sound source. Conventional systems loose 6 dB in the same circunstances. This Line Array inherent advantage permits large SPL at long distances while offering bearable levels in the near field.

Main Features:

• Compact. AR 208 is a compact system, which allows it to be used from small to large productions and whose size makes it ideal to be transported easily.
• Powerful. The use of complex waveguides allow absolute control over the vertical coverage, a priority order to run our sound. The final result is a clear message without sound reflections.
• Simple. The enclosures are fastened together with a magnetized pin system that allow to easily adjust the correct angle graduation AR units 208. Also, by EASE Focus software system you can properly calibrate the angulation of the enclosures depending on the architectural features of the place where it will be used.
• Versatile. Its flying system allows to hold up to 24 units sound systems with capacities exceeding 15,000 listeners. In its minimum configuration can hold 3 units on each side.

TECHNICAL SPECIFICATIONS

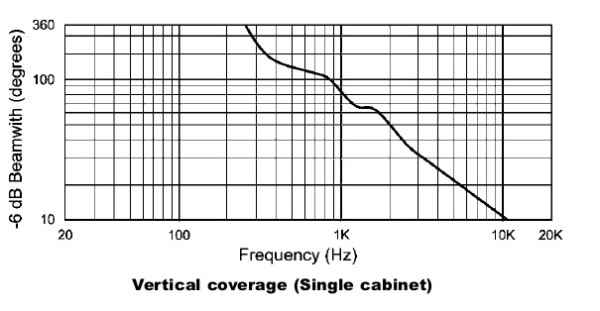

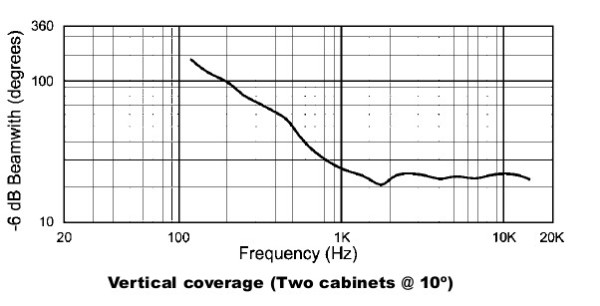

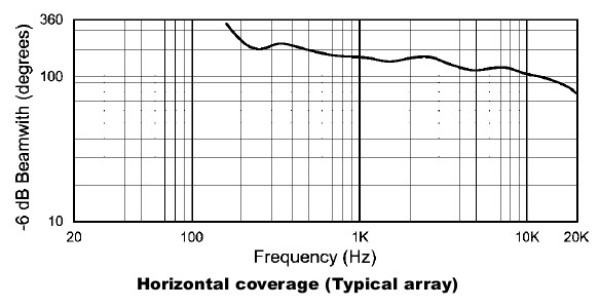

GRÁFICOS TÉCNICOS
